Elo I-Series 2.0 NO-OS-i3 15.6" BLK
Artikelcode
E850003
EAN-code
0843173112503
Toepassing
Interactive / Touch
Beeldschermdiagonaal
15.6 "
Downloads
Klik hier voor de downloads
Heeft u interesse in de aanschaf van dit product?
Gerelateerde producten
Uitgelichte functionaliteiten
Specificaties
I-Series for Windows
Elo's I-Series for Windows delivers commercial-grade computing with the capabilities, security and enterprise infrastructure of a powerful, Windows-based platformāall in a sleek, yet durable fixed tablet form factor.
Built on a modular platform and available with either 15-inch or 22-inch displays, the I-Series for Windows can be found in installations across the globe, from in-store interaction and point-of-sale to self-service, hospitality and corporate office environments. The uses are virtually unlimited.
Endless Versatility
The Elo I-Series offers versatility across environments. From retail and entertainment to corporate offices and signage, the I-Series is an excellent choice to meet the demands of continuous public use.
Configure with Elo Edge Connect
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripherals that seamlessly attach to the edge of the touchscreen. And you can add or swap them out later as your needs change.

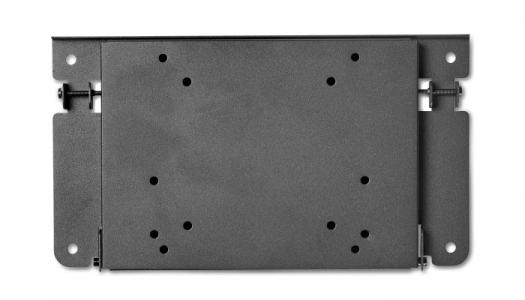

Stands & Mounts
With a standard VESA mount, we give you the flexibility to mount our products however you want.
Windows or Linux. You Choose.
Elo's I-Series utilizes the reliability-tested performance and security of Intel's 8th-generation processors and vProā¢ platform. Available with Windows 10 or, for added flexibility, the I-Series offers models with no OS-all pretested with Linux SuSE, Ubuntu and Red Hat operating systems-allowing businesses to get the solution best suited for them.
Get Peace of Mind With EloCare
EloCare is service and support from the people who know your Elo products best. From extended warranties and on-site exchange to advance unit replacement and field services, the highly skilled Elo technical specialists will get you up and running.
Elo's I-Series for Windows delivers commercial-grade computing with the capabilities, security and enterprise infrastructure of a powerful, Windows-based platformāall in a sleek, yet durable fixed tablet form factor.
Built on a modular platform and available with either 15-inch or 22-inch displays, the I-Series for Windows can be found in installations across the globe, from in-store interaction and point-of-sale to self-service, hospitality and corporate office environments. The uses are virtually unlimited.
Endless Versatility
The Elo I-Series offers versatility across environments. From retail and entertainment to corporate offices and signage, the I-Series is an excellent choice to meet the demands of continuous public use.
Configure with Elo Edge Connect
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripherals that seamlessly attach to the edge of the touchscreen. And you can add or swap them out later as your needs change.
Stands & Mounts
With a standard VESA mount, we give you the flexibility to mount our products however you want.
Windows or Linux. You Choose.
Elo's I-Series utilizes the reliability-tested performance and security of Intel's 8th-generation processors and vProā¢ platform. Available with Windows 10 or, for added flexibility, the I-Series offers models with no OS-all pretested with Linux SuSE, Ubuntu and Red Hat operating systems-allowing businesses to get the solution best suited for them.
Get Peace of Mind With EloCare
EloCare is service and support from the people who know your Elo products best. From extended warranties and on-site exchange to advance unit replacement and field services, the highly skilled Elo technical specialists will get you up and running.
Beeldscherm
Beeldschermreactietijd rise/fall
25.00 ms
Afneembaar scherm
Nee
Beeldschermdiagonaal
15.6 "
LED backlight
Ja
Resolutie
1920 x 1080 Pixels
HD type
Full HD
Responstijd
25.00 ms
Beeldscherm vorm
Flat screen
Oorspronkelijke beeldverhouding
16:9
Touchscreen
Ja
Touch technologie
Multi-touch
Beeldverhouding
16:9
Audio
Ingebouwde luidsprekers
Ja
Gemiddeld vermogen
2.00 W
Poorten & interfaces
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A
1
Aantal Ethernet LAN (RJ-45)-poorten
1.00
Aantal USB 2.0-poorten
4.00
Hoofdtelefoonuitgangen
1.00
Gewicht en omvang
Breedte
384.20 mm
Diepte
43.80 mm
Hoogte
246.40 mm
Gewicht
2200.00 g
Breedte apparaat (met standaard)
384.20 mm
Diepte apparaat (met standaard)
43.80 mm
Hoogte apparaat (met standaard)
246.40 mm
Breedte verpakking
462 mm
Diepte verpakking
216 mm
Hoogte verpakking
346 mm
Gewicht verpakking
4300 g
Energie
AC-adapter, vermogen
100.00 W
AC-adapterfrequentie
50-60 Hz
AC-adapter ingangsspanning
100 - 240 V
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 35 Ā°C
Relatieve vochtigheid in bedrijf (V-V)
20 - 80 procent
Temperatuur bij opslag
-20 - 60 Ā°C
Luchtvochtigheid bij opslag
5 - 95 procent
Netwerk
Ethernet LAN
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Wi-Fi-standaarden
802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Bluetooth
Ja
Bluetooth-versie
5.0
Ergonomie
VESA-montage
Ja
Paneelmontage-interface
75 x 75 mm
Overige specificaties
Wifi
Ja
SSD capaciteit
128.00 GB
Soort optische drive
N
Design
Kleur van het product
Black
SSD-vormfactor
M.2
Prestatie
Type product
All-in-One tablet PC
Trusted Platform Module (TPM)
Ja
Opslagmedia
Totale opslagcapaciteit
128.00 GB
Opslagmedia
SSD
Aantal geĆÆnstalleerde SSD's
1.00
GeĆÆntegreerde geheugenkaartlezer
Nee
Kenmerken
3D
Nee
Processor
PCI Express slots versie
3.0
Processorfabrikant
Intel
Processorfamilie
Intel Core i3
Processormodel
i3-8100T
Frequentie van processor
3.10 GHz
Aantal processorkernen
4
Processor cache
6.00 MB
Geheugenbandbreedte ondersteund door de processor ( max)
37.5 GB/s
Processor aantal threads
4.00
Processor cache type
Smart Cache
Systeembus
8.00 GT/s
Processor socket
LGA 1151 (Socket H4)
Processor lithografie
14.00 nm
Processor operating modes
64-bit
Stepping
B0
Bus type
DMI3
Codenaam processor
Coffee Lake
Thermal Design Power (TDP)
35.00 W
Maximaal aantal PCI Express-lijnen
16
PCI Express configuraties
1x16,1x8+2x4,2x8
Tjunction
82.00 Ā°C
Chipset moederbord
Intel H310
Maximaal intern geheugen ondersteund door processor
64 GB
Geheugentypen ondersteund door processor
DDR4-SDRAM
Klokgeheugen-snelheden ondersteund door processor
2400 MHz
Geheugenkanalen ondersteund door processor
Dual
ECC ondersteund door processor
Y
Geheugen
Intern geheugen
8.00 GB
Kloksnelheid geheugen
2666.00 MHz
Geheugenslots
2
Geheugen slots type
SO-DIMM
Geheugenlayout
1 x 8 GB
Maximum intern geheugen
32.00 GB
Intern geheugentype
DDR4-SDRAM
Video
On-board graphics adapter model
Intel UHD Graphics 630
Discreet grafische adapter model
Not available
Ingebouwde grafische adapter
Ja
Software
Inclusief besturingssysteem
N
Luidsprekers
Aantal luidsprekers
2.00
Multimedia
Ingebouwde camera
Nee
Grafisch
4K-ondersteuning
Y
Maximaal geheugen ingebouwde grafische adapter
64 GB
Basisfrequentie ingebouwde grafische adapter
350.00 MHz
Graphics on-board -adapter dynamische frequentie (max)
1100.00 MHz
Aantal displays ondersteund (door on-board grafische adapter)
3
On-board grafische adapter ID
0x3E91
Processor speciale functies
Processorcode
SR3Y8
Enhanced Intel SpeedStep Technology
Ja
IntelĀ® Quick Sync Video Technology
Ja
IntelĀ® Clear Video HD Technology (IntelĀ® CVT HD)
Ja
IntelĀ® Clear Video-technologie
Y
IntelĀ® InTruā¢ 3D Technology
Ja
IntelĀ® Smart Cache
Ja
IntelĀ® AES New Instructions (IntelĀ® AES-NI)
Ja
IntelĀ® Trusted Execution Technology
Nee
IntelĀ® Enhanced Halt State
Ja
IntelĀ® VT-x with Extended Page Tables (EPT)
Ja
IntelĀ® Secure Key
Ja
IntelĀ® TSX-NI
Nee
IntelĀ® Stable Image Platform Program (SIPP)
Nee
IntelĀ® Clear Video Technology for Mobile Internet Devices (IntelĀ® CVT for MID)
Ja
IntelĀ® 64
Ja
Execute Disable Bit
Ja
Idle States
Ja
Thermal Monitoring Technologies
Ja
Verpakkingsgrootte processor
37.5 x 37.5 mm
Ondersteunde instructie sets
AVX 2.0,SSE4.1,SSE4.2
Schaalbaarheid
1S
CPU configuratie (max)
1.00
Ingebouwde opties beschikbaar
Ja
IntelĀ® Virtualization Technology for Directed I/O (VT-d)
Ja
Versie IntelĀ® Identity Protection Technology
1.00
Versie IntelĀ® Stable Image Platform Program (SIPP)
0.00
Versie IntelĀ® Secure Key Technology
1.00
IntelĀ® Virtualization Technology (VT-x)
Y
Versie IntelĀ® TSX-NI
0.00
IntelĀ® Turbo Boost Technology
N
IntelĀ® Hyper Threading Technology (IntelĀ® HT Technology)
N
IntelĀ® Identity Protection Technology (IntelĀ® IPT)
Y
Draadloos LAN
Wifi-standaard
Wi-Fi 5 (802.11ac)
Architectuur
64-bit computing
Ja
Pen
Inclusief pen
Nee
Aparte grafische adapter
N
Processorgeneratie
Intel Core i3-8xxx
Familie ingebouwde grafische adapter
Intel UHD Graphics
Configureerbare TDP-downfrequentie
2.4 MHz
Configureerbare TDP-down
25 W
Totale capaciteit SSD's
128 GB
Gewicht (met standaard)
2200 kg
On-board grafische adapter DirectX-versie
12.0
On-board grafische adapter OpenGL versie
4.5
Code geharmoniseerd systeem (HS)
84713000
IntelĀ® OS Guard
Ja
IntelĀ® Software Guard Extensions (IntelĀ® SGX)
Y
Thermal solution specificatie
PCG 2015A
ARK ID processor
129944
