This product is no longer available.

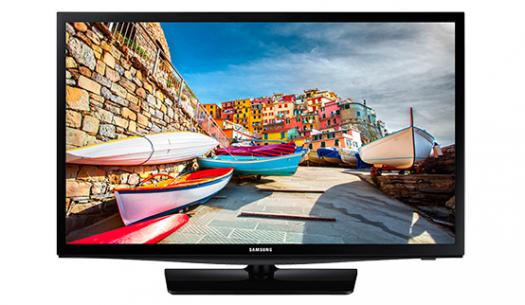

Samsung HG28EE690, Premium HD
Item code
HG28EE690ABXEN
EAN-code
8806088416946
Solutions
Hospitality TV
Display diagonal
28 "
Downloads
Click here for the downloads
Are you interested in purchasing this product?
Related products
Highlighted functionality
Specifications
Built to meet the growing demands of guests, Samsung’s new HE690 premium hospitality displays introduce an all-in-one content and entertainment center with an array of convenient features. Through Samsung’s LYNK REACH 4.0 content management solution, managers can deliver customized content geared to their guests while being able to streamline management of hundreds of in-room displays. Meanwhile, guests gain further benefits such as being provided with low-cost, hassle-free IPTV service, and improved connectivity and compatibility with their personal devices. Having a connected Ethernet Bridge and Bluetooth music player completes the overall offerings of HE690 displays, as they work to evolve standard in-room displays into multi-functional content centers, thereby empowering guests while concurrently helping managers realize improved operational efficiency.
Technical details
Remote control type
TM1240A
ECO mode
Yes
Quick installation guide
Yes
Display
Display diagonal
28 "
Display resolution
1366 x 768 pixels
HD type
HD
Dynamic contrast ratio marketing name
Mega Contrast
Screen shape
Flat
Display diagonal (metric)
70.00 cm
Supported graphics resolutions
1360 x 768 (WXGA)
Native aspect ratio
16:9
Aspect ratio
16:9
OLED technology
No
Audio
Audio Return Channel (ARC)
Y
Audio decoding technologies
Dolby Digital Plus
Built-in speaker(s)
Yes
Number of loudspeakers
2.00
RMS rated power
10.00 W
Audio decoders
DTS,Dolby Digital,Dolby Digital Plus
Ports & interfaces
HDMI ports quantity
3
Common interface Plus (CI+) version
1.3
Composite video in
1
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
1.00
PC in (D-Sub)
Yes
PC Audio in
Yes
Consumer Electronics Control (CEC)
Anynet+
USB 2.0 ports quantity
2.00
Digital audio optical out
1.00
RF ports quantity
1.00
Common interface Plus (CI+)
Yes
Headphone outputs
1.00
Total number of outputs
3
HDMI ports
3
VGA ports
1
DVI ports
0
Weight & dimensions
Width (without stand)
643.40 cm
Width
643.40 mm
Depth
62.90 mm
Height
396.50 mm
Weight
3800.00 g
Width (with stand)
643.40 mm
Depth (with stand)
163.30 mm
Height (with stand)
433.60 mm
Depth (without stand)
49.10 cm
Height (without stand)
396.50 cm
Weight with stand
4200.00 g
Power
Power consumption (typical)
33.00 W
Power consumption (standby)
0.50 W
Annual energy consumption
46.00 kWh
AC input voltage
220 - 240 V
AC input frequency
50 - 60 Hz
Auto power off
Yes
Energy efficiency class
A
Network
Ethernet LAN
Yes
Ethernet LAN
Yes
Browsing
Yes
TV tuner
Digital signal format system
DVB-C,DVB-S2,DVB-T2
Auto channel search
Yes
Tuner type
Analog & digital
Management features
Picture-in-Picture
Yes
Hotel mode
Y
Smart modes
Game, Movie, Music, Sports
Electronic Programme Guide (EPG)
Yes
On Screen Display (OSD)
Yes
Number of OSD languages
27.00
Sleep timer
Yes
On/Off timer
Yes
Ergonomics
VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Packaging content
Remote control included
Yes
Batteries included
Yes
Cables included
AC,USB
Quick start guide
Yes
Other features
Wi-Fi
Yes
DVI port
No
Design
Product colour
Black
Performance
Channel list copy function
Y
Subtitles function
Yes
Picture processing technology
Samsung Wide Color Enhancer Plus
Teletext function
Yes
Game mode
Yes
Clock function
Y
Recommended usage
12 / 7
Smart TV
Smart TV
Yes
Internet TV
Yes
Hybrid Broadcast Broadband TV (HbbTV)
Yes
Features
3D
No
Processor
Processor cores
4
Loudspeakers
Number of speakers
2.00
Hospitality features
Hotel channel list
Yes
Alarm clock
Yes
Web browser
Yes
ConnectShare (HDD)
Yes
Weight (with stand)
4200 kg
ConnectShare (USB)
Yes
HID support
Yes
Energy saving mode
Yes
Hospitality home menu
Yes
Hospitality Plug and Play
Yes
Welcome message
Yes
Clock back up supply
Yes
My Channel function
Yes
Multi-code remote control
Yes
Screwed battery cover
Yes
Music mode backlight on/off
Yes
USB cloning
Yes
Smoovie compatibility
Yes
Auto source mode
Yes
Soundbar compatibility
Yes
Logo display with time-out setting (BMP/movie)
Yes
Weight (without stand)
3800.00 kg
Content management solution
Samsung LYNK REACH,Samsung LYNK SINC
LYNK REACH version
4.0
Power on mode
Yes
Software clock
Yes
Security mode
Yes
Energy efficiency class (old)
A
