This product is no longer available.

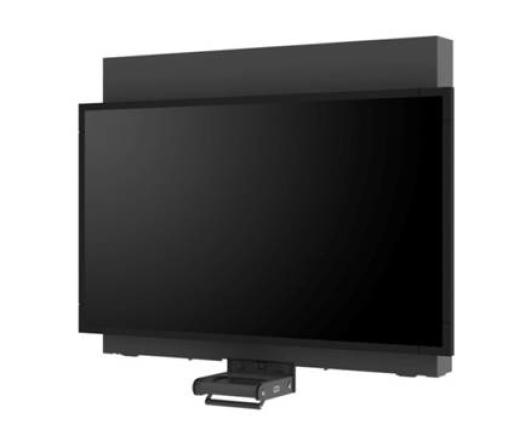

NEC MultiSync P801-PG
Item code
60003708
EAN-code
5028695110687
Solutions
Digital Signage
Display diagonal
80 "
Downloads
Click here for the downloads
Are you interested in purchasing this product?
Related products
Highlighted functionality
Specifications
The new MultiSync® P801 PG with protection glass follows the tradition of NEC’s professional large format display line. The high quality Conturan® glass of Schott ensures reduced reflection and high light transmission for an unrestricted view of display content.
Designed for a wide array of applications such as retail signage including 24/7, transport, corporate or control room P Series with protection glass offers flexible installation combined with industry leading performance.
BENEFITS
- Maximum investment security - assured as the display is protected against damage from external impacts such as knocks and blows
- Programmable Ambient Light Sensor - for reduced power consumption and eye pleasing brightness levels.
- Future Ready with OPS Cable Free Expansion - upgrade the power of your display at any time without the need for external cables or devices.
- DICOM support- for medical applications.
- Special Conturan® Coating - anti-reflective glass with dual-sided optical interference coatings between 50 to 100 nm thick provide reduced reflection and resultantly high light transmission for an unrestricted view of display content.
- Free Download of Multi-Display Management Software - with NaViSet Administrator 2 you can manage all your connected display devices from a centralized location.
- Special Characteristics - Auto ID assignment; Auto tiling function; HTTP Server; Image flip; NaViSet Administrator 2; Point Zoom Function; Programmable 10-bit LUT with 3 memory banks; Sticky Note Function in OSD; User readable log function; Ambient light sensor; Carbon savings meter; ECOMode; Human Sensor
Designed for a wide array of applications such as retail signage including 24/7, transport, corporate or control room P Series with protection glass offers flexible installation combined with industry leading performance.
BENEFITS
- Maximum investment security - assured as the display is protected against damage from external impacts such as knocks and blows
- Programmable Ambient Light Sensor - for reduced power consumption and eye pleasing brightness levels.
- Future Ready with OPS Cable Free Expansion - upgrade the power of your display at any time without the need for external cables or devices.
- DICOM support- for medical applications.
- Special Conturan® Coating - anti-reflective glass with dual-sided optical interference coatings between 50 to 100 nm thick provide reduced reflection and resultantly high light transmission for an unrestricted view of display content.
- Free Download of Multi-Display Management Software - with NaViSet Administrator 2 you can manage all your connected display devices from a centralized location.
- Special Characteristics - Auto ID assignment; Auto tiling function; HTTP Server; Image flip; NaViSet Administrator 2; Point Zoom Function; Programmable 10-bit LUT with 3 memory banks; Sticky Note Function in OSD; User readable log function; Ambient light sensor; Carbon savings meter; ECOMode; Human Sensor
Technical details
LED backlighting type
Edge-LED
Sustainability certificates
RoHS
Ambient light sensor
Yes
Display
Display diagonal
80 "
Display technology
LED
Display type
LED
Display resolution
1920 x 1080 pixels
Display brightness
500 cd/m²
HD type
Full HD
Response time
4.00 ms
Contrast ratio (typical)
5000:1
Viewing angle, horizontal
178.00 °
Viewing angle, vertical
178.00 °
Horizontal scan range
31.5 - 91.1 kHz
Vertical scan range
50 - 85 Hz
Touchscreen
No
Audio
Number of built-in speakers
2.00
Built-in speaker(s)
Yes
RMS rated power
20.00 W
Number of speakers
2.00
Ports & interfaces
Ethernet LAN
Yes
HDMI ports quantity
1
Ethernet LAN data rates
10,100 Mbit/s
DVI port
Yes
DVI-D ports quantity
1
VGA (D-Sub) input ports
1
AUX in
Yes
DisplayPorts quantity
2
Total number of outputs
4
HDMI ports
1
DVI ports
1
VGA ports
1
Displayport ports
2
Weight & dimensions
Width
1836.20 mm
Depth
96.90 mm
Height
1061.30 mm
Weight
85200.00 g
Power
Power consumption (typical)
235.00 W
Power consumption (standby)
0.50 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 80 %
Design
Product design
Digital signage flat panel
Product colour
Black
VESA mounting
Yes
Panel mounting interface
400 x 400 mm
Bezel width (bottom)
29.70 cm
Bezel width (side)
29.70 cm
Bezel width (top)
29.70 cm
RoHS compliance
Yes
Certification
C-tick; CE; FCC; PSB; TĂśV GS; UL/C-UL, CSA; VCCI
Performance
HDCP
Yes
Recommended usage
24 / 7
Packaging data
Remote control included
Yes
Cables included
AC,DVI
Harmonized System (HS) code
85285210
