This product is no longer available.
One of the successors is NEC MultiSync X554UN
NEC MultiSync X551UN
Item code
60003146
EAN-code
5028695108240
Solutions
Digital Signage
Display diagonal
55 "
Downloads
Click here for the downloads
Are you interested in purchasing this product?
Related products
Highlighted functionality
Specifications

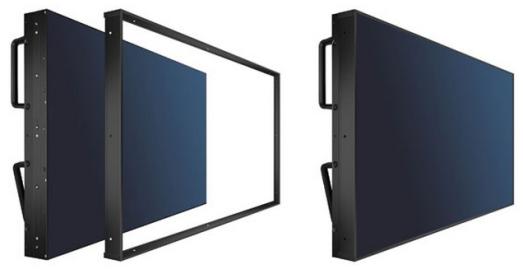

The 55” NEC X551UN takes your customers’ LCD video walls to new levels of impact. This professional-grade large-screen display is designed for the rigors of 24/7 operation while introducing new levels of impact to your facility. Advanced technologies of this model include direct LED backlighting for improved uniformity, full high-definition resolution (1920 x 1080) and a 5.5mm distance between active screen areas. Additionally, this display can be deployed in video walls up to 10x10 (100 displays). The X551UN also offers Intel’s Open Pluggable Specification (OPS), which is the first industry-wide standardization in option slots that allows easier installation, use and maintenance of digital signage.
- Full 1080p high-definition resolution provides stunning detail;
- Professional-grade LCD panel and components;
- Expanded connectivity with digital loop through;
- Direct LED backlighting technology improves power consumption and uniformity;
- Built-in expansion slot allows for seamless integration of NEC/third-party components, as well as future OPS-based products;
- Ground-breaking ultra-narrow bezel of 5.5 millimeters (screen-to-screen)
- TileMatrix™ allows you to create video walls up to 10 x 10.
- Full 1080p high-definition resolution provides stunning detail;
- Professional-grade LCD panel and components;
- Expanded connectivity with digital loop through;
- Direct LED backlighting technology improves power consumption and uniformity;
- Built-in expansion slot allows for seamless integration of NEC/third-party components, as well as future OPS-based products;
- Ground-breaking ultra-narrow bezel of 5.5 millimeters (screen-to-screen)
- TileMatrix™ allows you to create video walls up to 10 x 10.
Technical details
Sustainability certificates
ENERGY STAR
Display
Display diagonal
55 "
Display resolution
1920 x 1080 pixels
Display brightness
500 cd/m²
HD type
Full HD
Contrast ratio (typical)
4000:1
Viewing angle, horizontal
178.00 °
Viewing angle, vertical
178.00 °
Display number of colours
16.78 million colours
Horizontal scan range
31.5 - 91.1 kHz
Vertical scan range
50 - 85 Hz
Supported graphics resolutions
720 x 400,832 x 624,1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 768 (WXGA),1360 x 768 (WXGA),1600 x 1200 (UXGA),1920 x 1080 (HD 1080),640 x 480 (VGA),800 x 600 (SVGA)
Native aspect ratio
16:9
Ports & interfaces
Ethernet LAN
Yes
HDMI ports quantity
1
DVI-D ports quantity
2
Composite video in
1
Composite video out
1.00
Ethernet LAN (RJ-45) ports
1.00
DisplayPorts quantity
2
Total number of outputs
5
HDMI ports
1
DVI ports
2
Displayport ports
2
S-Video ports
1
Weight & dimensions
Width
1215.30 mm
Depth
128.10 mm
Height
686.10 mm
Weight
35000.00 g
Depth (with stand)
400.00 mm
Weight (with stand)
36000 kg
Power
Power consumption (typical)
190.00 W
Power consumption (standby)
1.00 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Energy Star certified
Yes
Operational conditions
Operating temperature (T-T)
5 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Storage relative humidity (H-H)
20 - 80 %
Other features
Cable lock slot
No
3D
No
AC (power) in
Yes
Audio input
Y
Audio output
Y
Built-in camera
No
S-Video inputs quantity
1
Weight with stand
36000.00 g
LED indicators
Yes
Display
LCD
Aspect ratio
16:9
Plug and Play
Yes
Design
Product design
Digital signage flat panel
Product colour
Black
VESA mounting
Yes
Panel mounting interface
400 x 400 mm
Performance
TV tuner integrated
No
On Screen Display (OSD)
Yes
Packaging data
Remote control included
Yes
Cables included
VGA
Manual
Yes
Quick start guide
Yes
Computer system
Computer system
No
